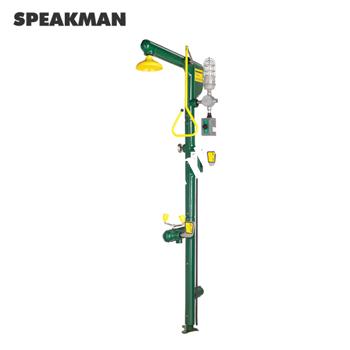

- 商品名稱：電伴熱洗眼器|Speakman 電加熱防凍復合式緊急沖淋/洗眼器SE-7000
- 商品編號：0B106007
- 品牌：SPEAKMAN
特點：
·通過溫度感應控制閥，在室內或室外環境溫度不低于-45.5 °C 時,可防止供水系統結冰。
·氣泡水洗眼:產品使用氣泡水，柔和沖擊力小,要洗凈眼中的污染物,ANSI標準推薦沖洗15分鐘,柔和的氣泡水使用戶更容易地持續沖洗眼睛;氣泡有助于水流平穩地流過眼球, 迅速有效地帶走眼睛表面的污染物
·安全沖淋花灑具有獨特設計,使每分鐘76升的水流能夠高效,均勻,柔和的沖洗用戶身體
·沖淋花灑通過拉桿開啟，具有伸縮功能，滿足ADA人群使用標準
·自動水流調節功能，適用水壓范圍為30-80 psi
·洗眼器通過槳式手柄控制

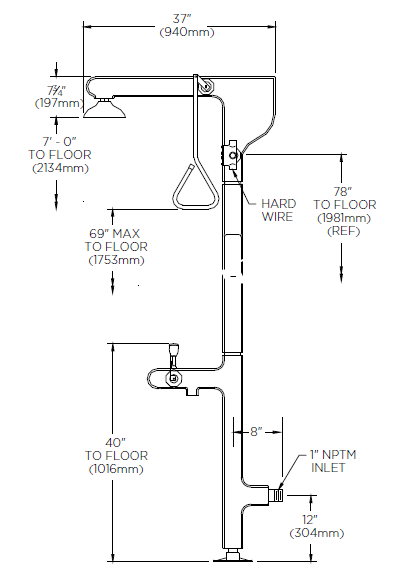

·尺寸：洗眼器高度 : 101.6cm, 沖淋頭高度 : 213.4cm, 底座直徑 : 22.8cm, 電源 : 220V50C單相交流電源, 水壓PSI (BAR) : 淋浴:30（2.07）,60（4.14）洗眼/洗臉器:30（2.07）, 流速GPM (LPM) : 淋浴:20 (75),25 (94)洗眼/洗臉器:3.82 (14)
·立柱表面處理：ABS塑料殼包裹熱鍍鋅供水管
·噴淋頭:帶有防塵蓋黃色塑料2個氣泡水洗眼噴頭
·閥門:1"-黃銅
·啟動裝置:不銹鋼槳式手柄
·進水:1" NPT 內螺紋
·性能:2.1公斤力/平方厘米壓力，洗眼器流量18.5升/分鐘，沖淋花灑流量76升/分鐘
·電源：220 V，50HZ，單相交流電
·接地保護：30 mA 地線
·標準:符合美國ANSI Z358.1認證，符合OSHA要求，符合FM/UL電器1級2類標準。
-----------------------------------------------------------------------------------------------------------------
• Easy to access plastic shell
• Activated by powder coated high visibility yellow, aluminum triangular pull rod
• 8 in. diameter high performing yellow plastic shower head
• Freeze Valve activates automatically below 40°F and protects unit from freezing in case of power outage
• 1 in. NPTF chrome plated brass stay-open ball valve
• 1 in. IPS galvanized steel pipe
• 1 in. NPT male, top or bottom supply inlet
• 20 GPM @ 30 psi shower
• (2) yellow plastic spray outlets with automatic flow control and flip-top dust caps
• ½ in. NPT, 3-way chrome plated brass ball valve
• 4.5 GPM @ 30 psi eye/facewash
• Stainless steel push handle activated eye/facewash
• Self-regulating heating cable with braided metal shield
• Thermostat is preset, hermetically sealed single pole contact switch with temperature range of 60°F to 70°F
• Closed cell rubber foam insulation
• NEMA 4X water tight and dust tight, suitable for indoor or outdoor locations junction box
• 120 vac, 60 cycle, single phase
• Electrical Classification Class 1 Division 2 GRP. B, C, D
• Ground Fault Protection: Installation will require minimum 30 mA GFPD
